Tri-Planar Ankle Foot Orthosis
Liens rapides
| Numéro de pièce | Description |
|---|
Information sur le produit

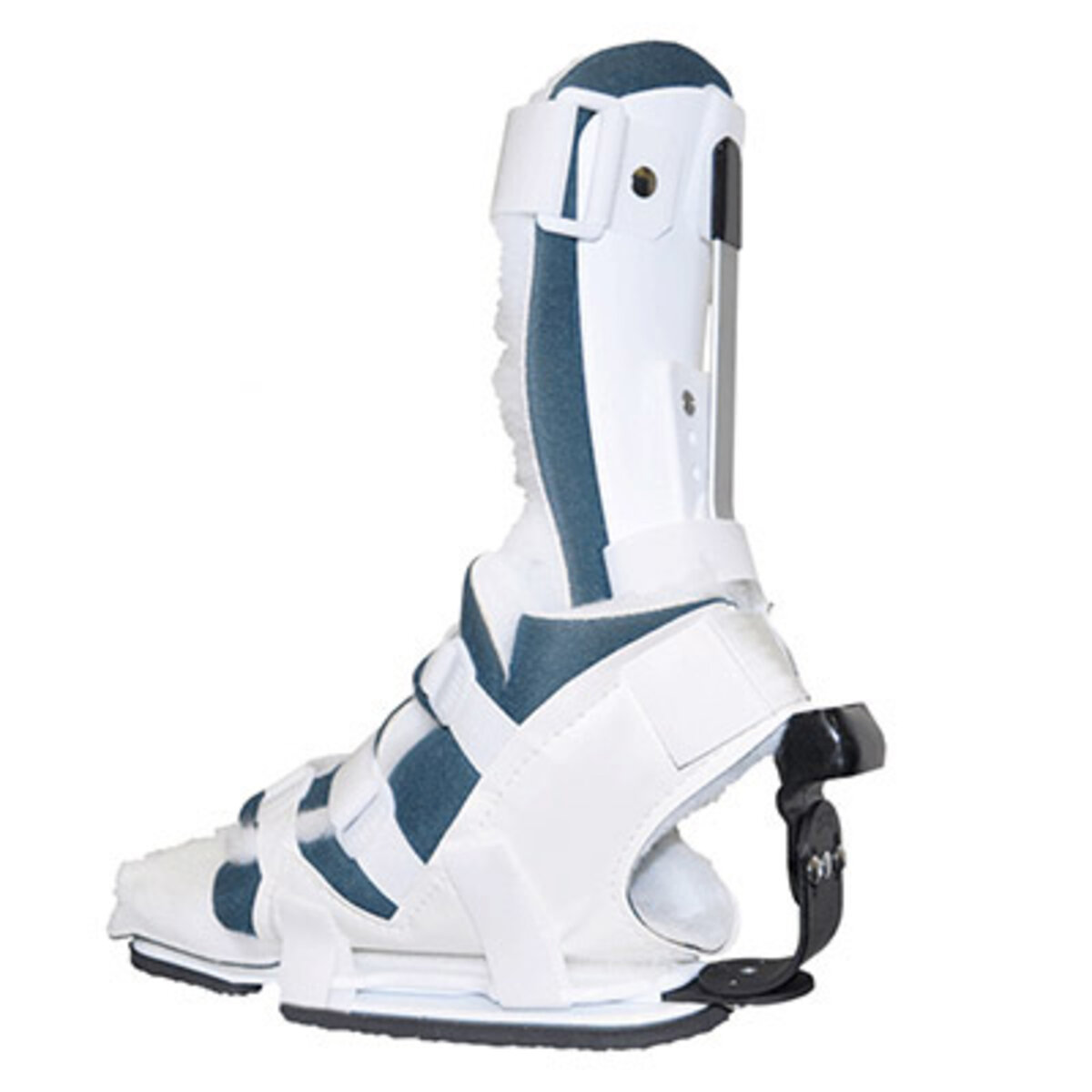

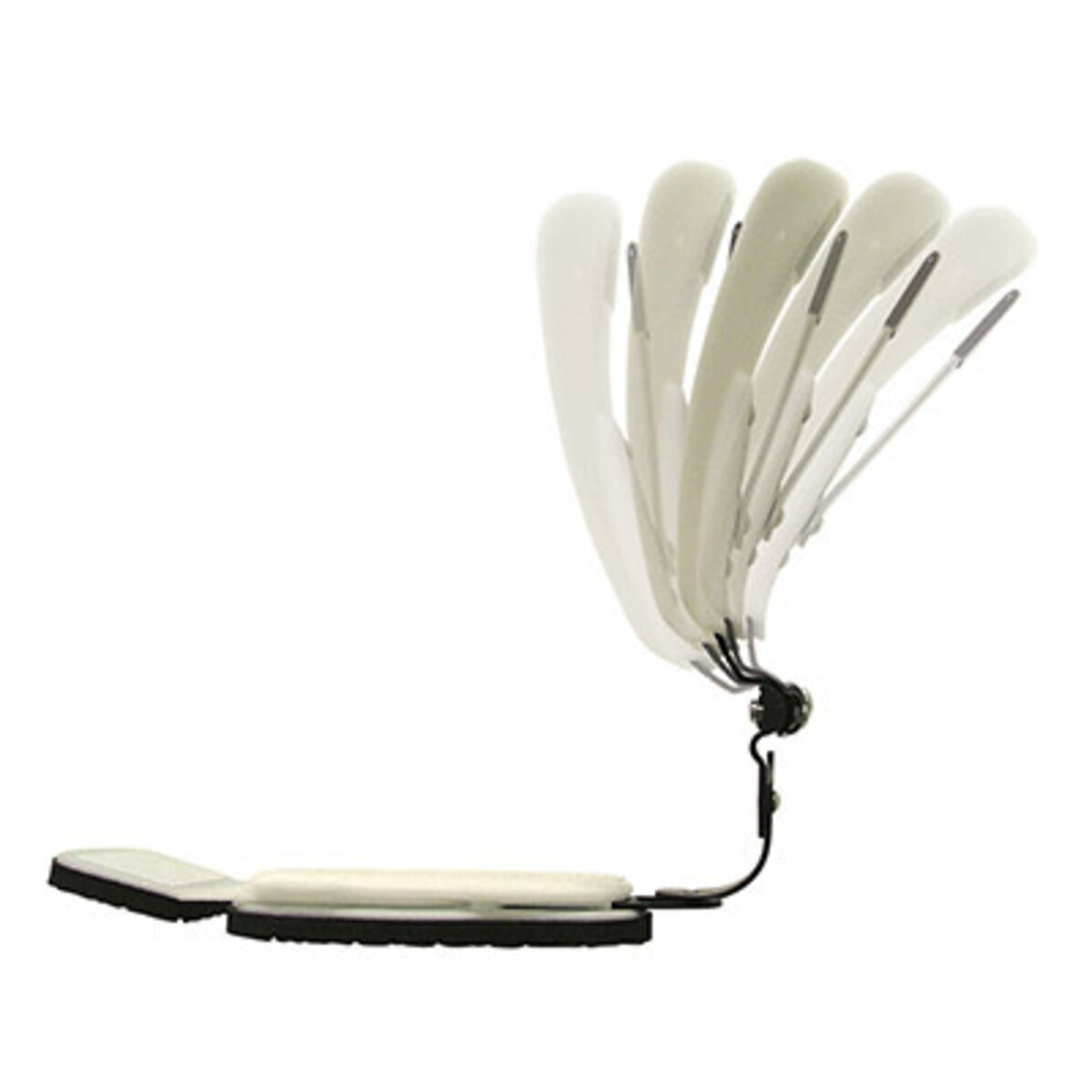

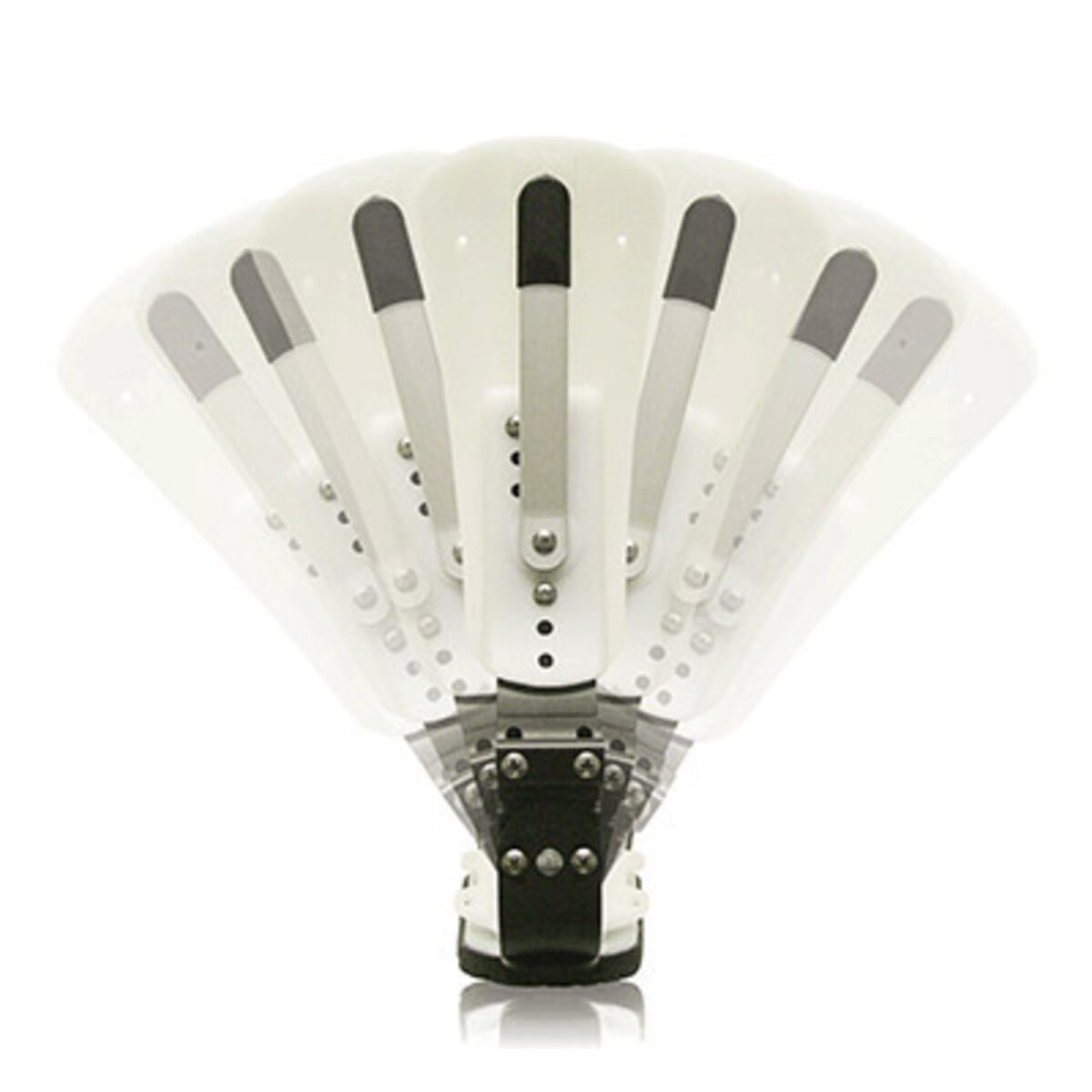

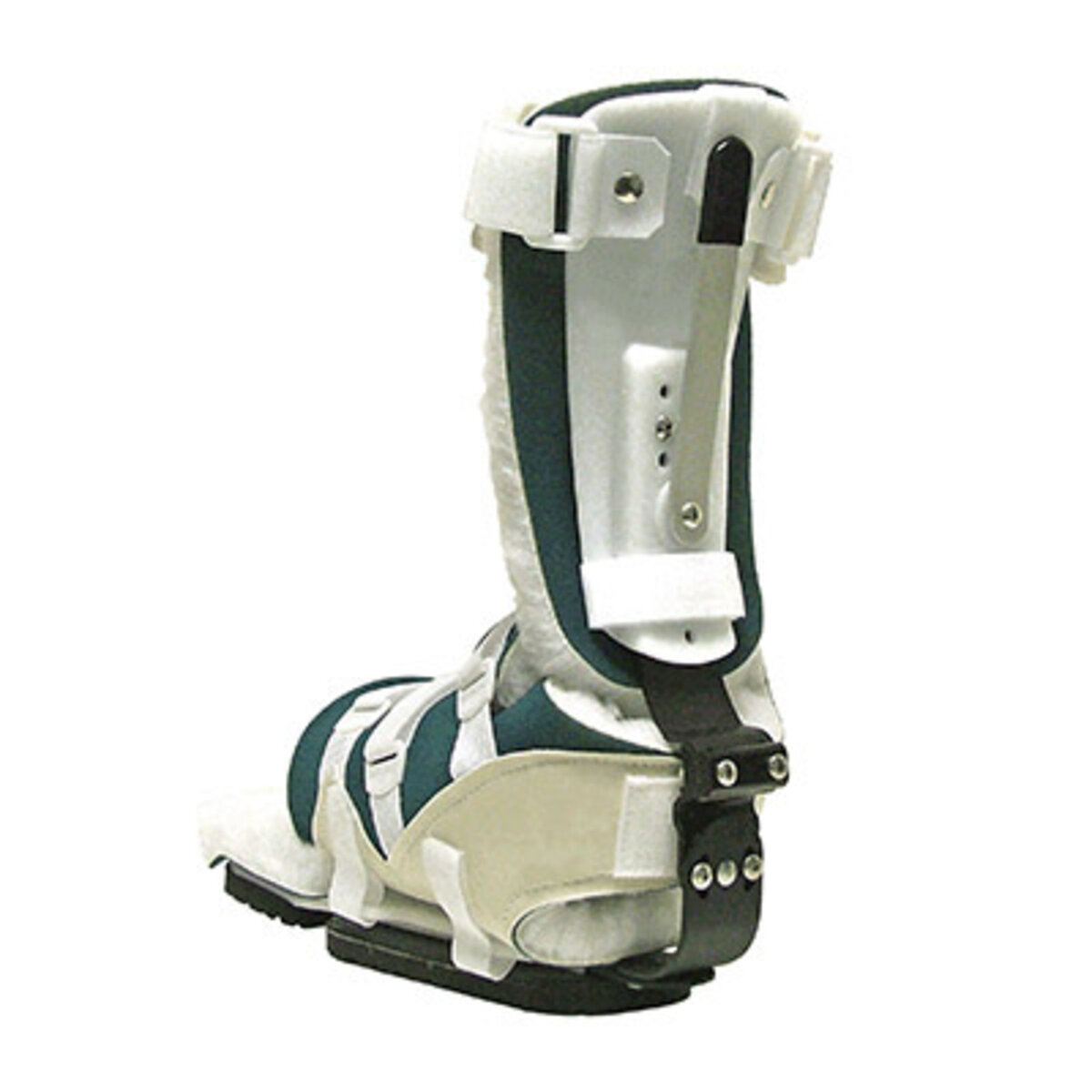

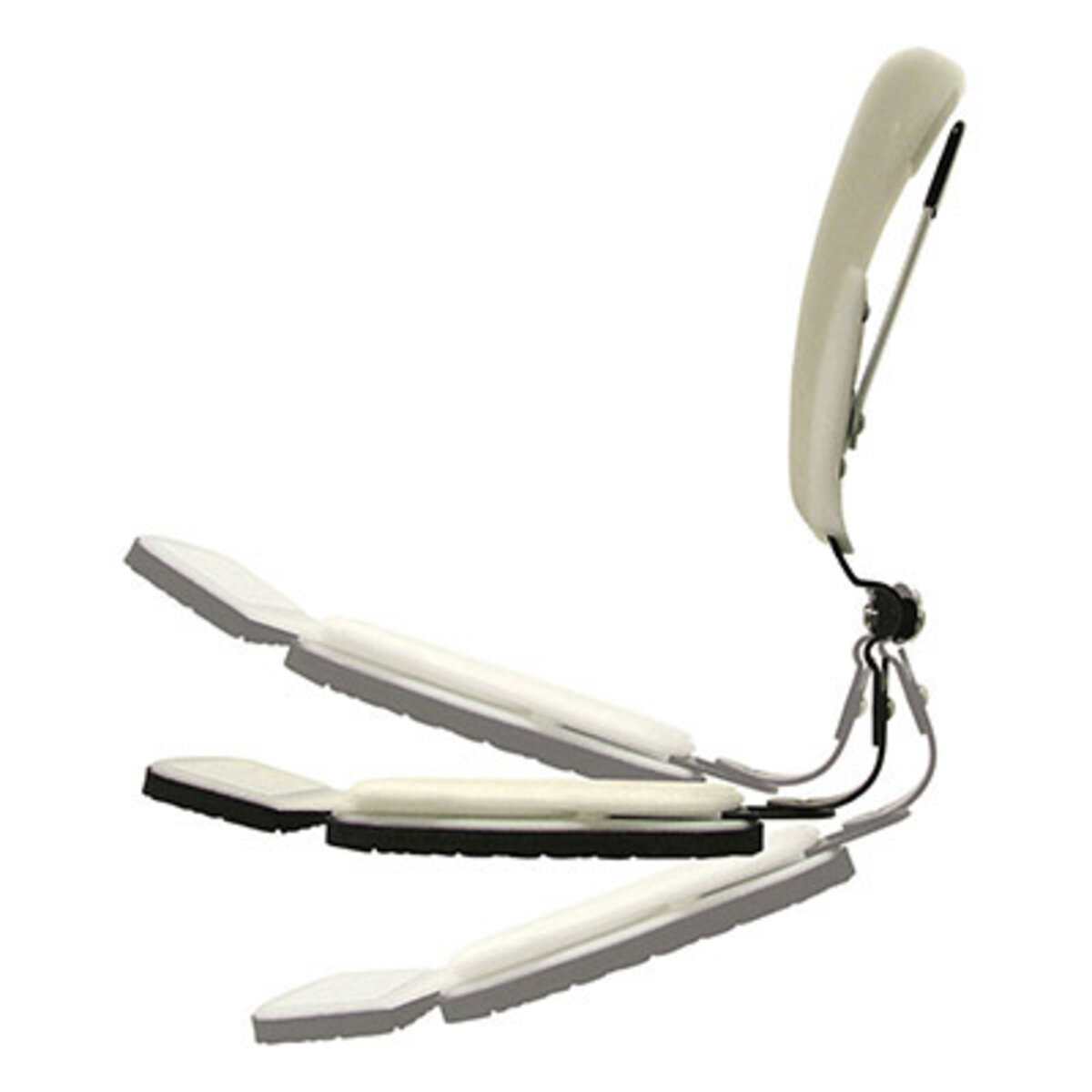

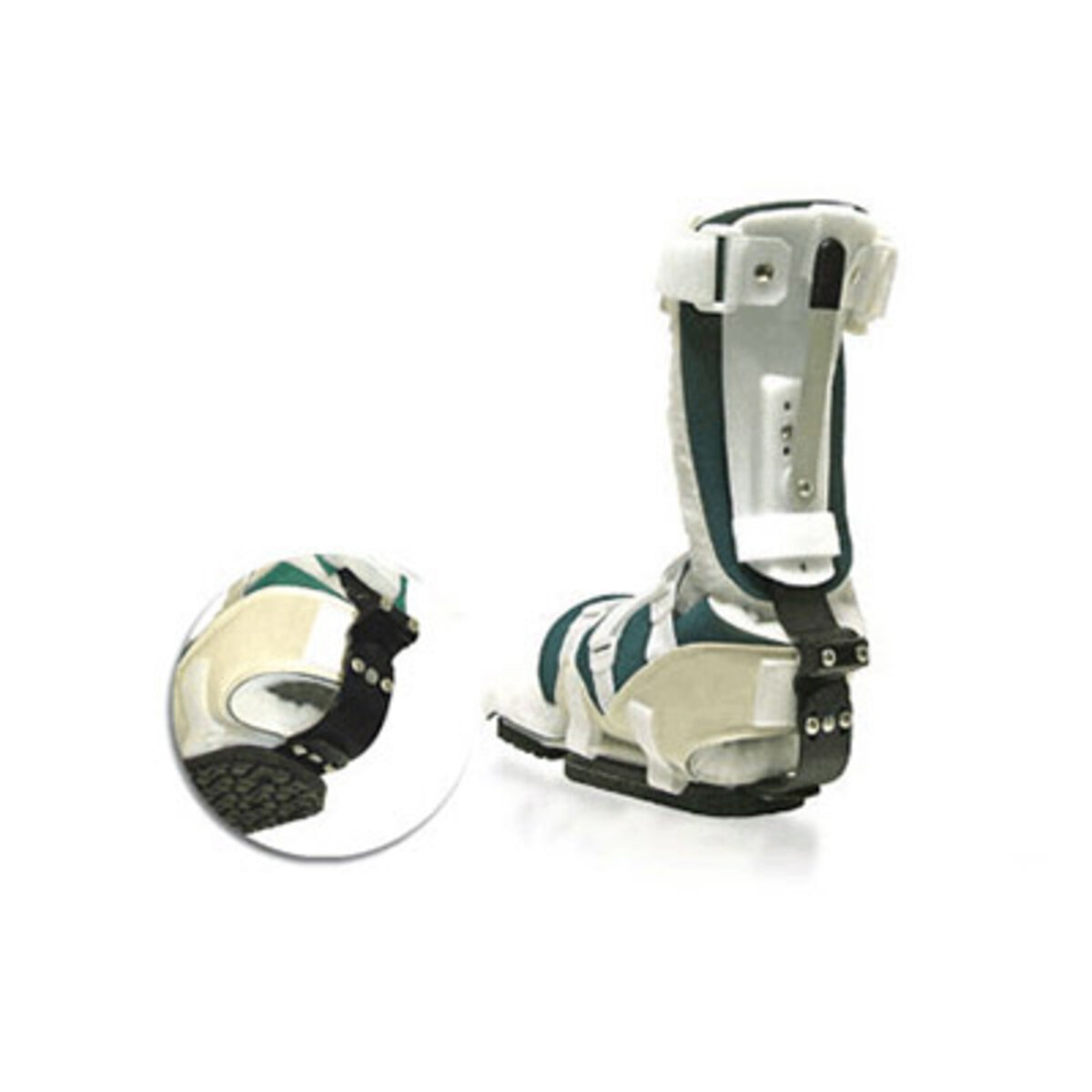

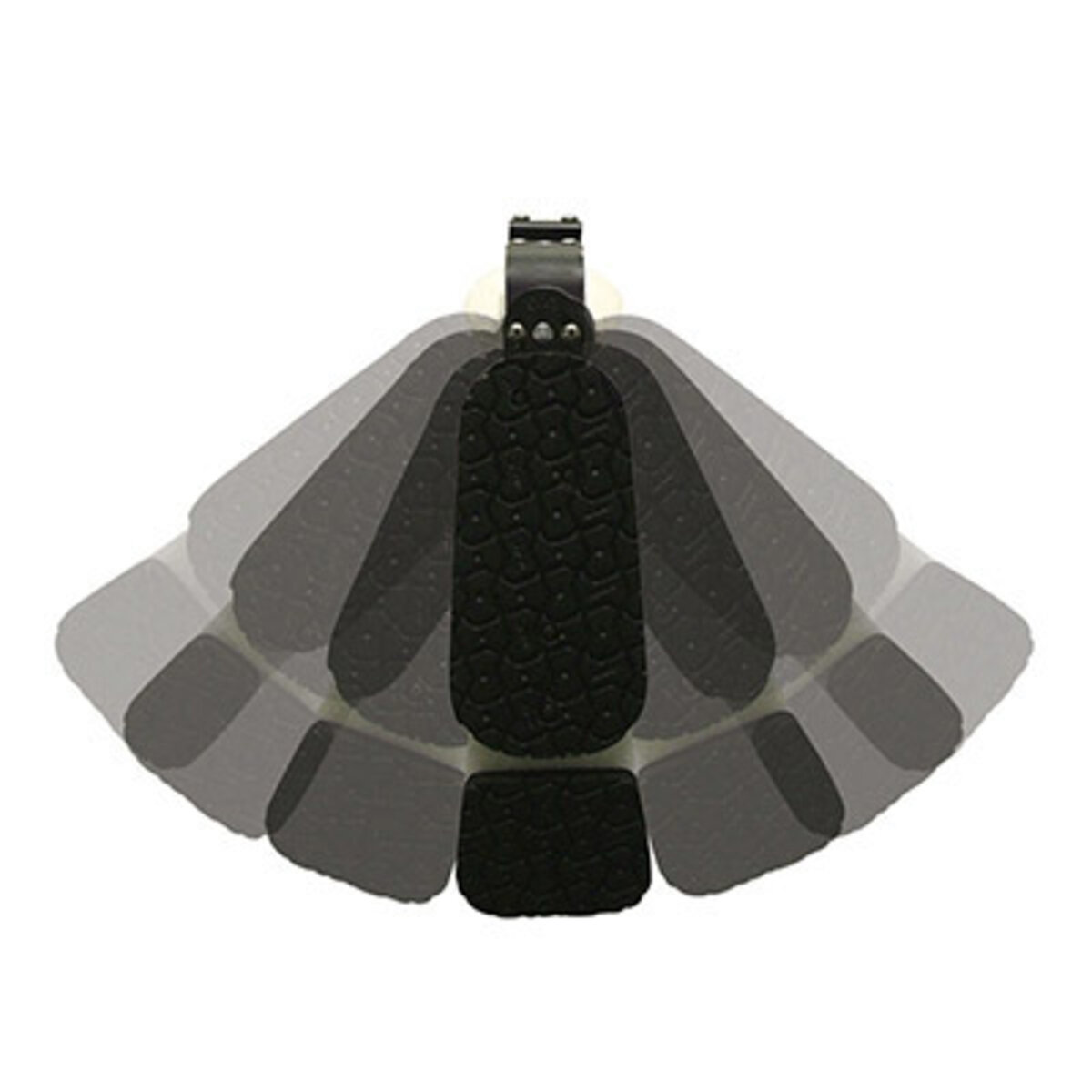

The Tri-Planar Articulating Ankle/Foot Orthosis combines the sagittal and coronal plane adjustment features of the Dual Action Orthosis with an additional transverse plane adjustment joint. This is another Ankle/Foot orthosis we’ve designed and fabricated to address multiple patient etiologies with one orthoses. The sagittal plane adjustment, featured on the APU® and Dual Action Orthoses, adjusts for the plantar flexion/dorsiflexion of the foot/ankle complex + or – 30º. The coronal plane adjustment, featured in both the EV™ and Dual Action Orthoses, adjusts for varus/valgus of foot/ankle complex + or – 30º. The orthosis is secured and fully adjustable to accommodate all anatomical parameters. The transverse plane adjustment, part of our Ankle/Foot Orthosis line, adjusts for internal and external rotation of the foot/ankle complex.
- Foot Drop
- Velcro Wraparound Straps
Spécifications
- Device Type: Static AFO
- Material: Plastic
- Weight Limit: 125lbs (Pediatric), 250lbs (Adult)
- Customization: Custom Fit
- Height (in): 9-13
- Foot Length (in): 4 3/4-12
- Size (cm): N/A
- Side: Universal
- Warranty: One year
